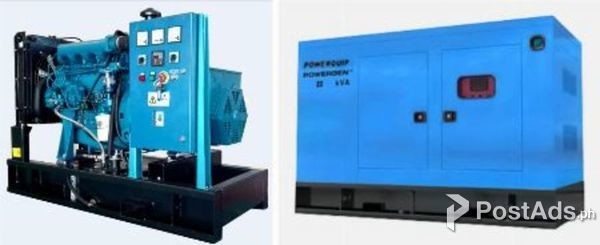

BRANDNEW PQ15 GENERATOR SET

Gen-Set Specifications

Genset Model PQ15*16

Power Factor 0.8-3 phase, 1.0-single phase

Frequency Standby Rating Prime Rating

kVA kW kVA kW

60Hz 19 15 18 14

B-Series Standard =102 dB(A)

F-Series With base fuel tank =102 dB(A)

L-Series With base fuel tank and soundproof enclosure =75 dB(A)@7m

Engine Specifications

Engine Make & Model Baudoin 4M06G18/6

Design 4 cycle, in-line, natural aspiration

Rated Speed 1800 rpm

Prime Power 23 kW

Standby Power 25 kW

Bore & Stroke 85x92 mm

Displacement 2.3 L

Cylinder Number 4

Battery Capacity 60A.h

Starting Method 12V electric starter and battery charging alternator

Fuel system Direct injection

Fuel consumption (l/hr)

Prime 110% Load 100% Load 75% Load 50% Load

23kW 6.43 5.91 4.52 3.27

Air Cleaner Type Dry replaceable element with restriction indicator

Lube Oil Filter Type Spin on full flow filer

Volume of oil pan (L) 9

Standard cooling system 45? ******t radiator

Coolant capacity(L) 11.5

Alternator Specifications

Alternator Make Marathon /Stamford

Alternator Model GM-16-4/PI044G

Design Brushless single bearing, revolving field

Stator 2/3 pitch

Rotor Single bearing, flexible disc

Exciter Type Self Excited

Insulation System Class H

Protection IP23

Winding Way 12

Voltage Regulation =±1%

-100% Brand New

-With strong and reliable after-sales support

-Units are in good condition

-Free Financing Assistant thru Metro bank Orix

-Viewing of units: Monday-Saturday

DEALER OF BRAND NEW TRUCKS AND HEAVY EQUIPMENT

PHILGEPS PLATINUM MEMBER, LGU SUPPLIER

BRAND: SINOTRUK HOW / HOMAN / FAW / CHENGLONG / T-King / MTTC / Liugong / Lonking / Yama / Agrimac / Socma / DONGFENG / Zoomlion / Zhenggong and many more.

PAYMENT TERMS:

-Cash

Bank Financing (Metro bank Orix Recommended)

ELIGIBILITY:

"Our company is PHILGEPS PLATINUM MEMBER and LGU Supplier"

For more inquiries and quotations pls text/pm or call these numbers:

09953732991/09385319744

look for Ms Andrea S. Pajanel
